Winding order and backface culling

The order of a triangle's vertices decides which side is its front; renderers skip back faces to save work, which is why flipped faces, mirrored meshes and single-sided planes can vanish in the engine.

foundationsmeshrenderingnormals

Winding order is "the relative order in which vertices are defined within a triangle" (Khronos Group: glTF 2.0 Specification). Seen from the camera, the three corners run either clockwise or counter-clockwise, and that direction decides whether the triangle is front-facing or back-facing (Khronos Group: glTF 2.0 Specification; OpenGL Wiki: Face Culling).

Backface culling is the renderer skipping triangles that face away from the camera. On a closed, solid object those triangles are always hidden behind the front ones, so drawing them would be wasted work.

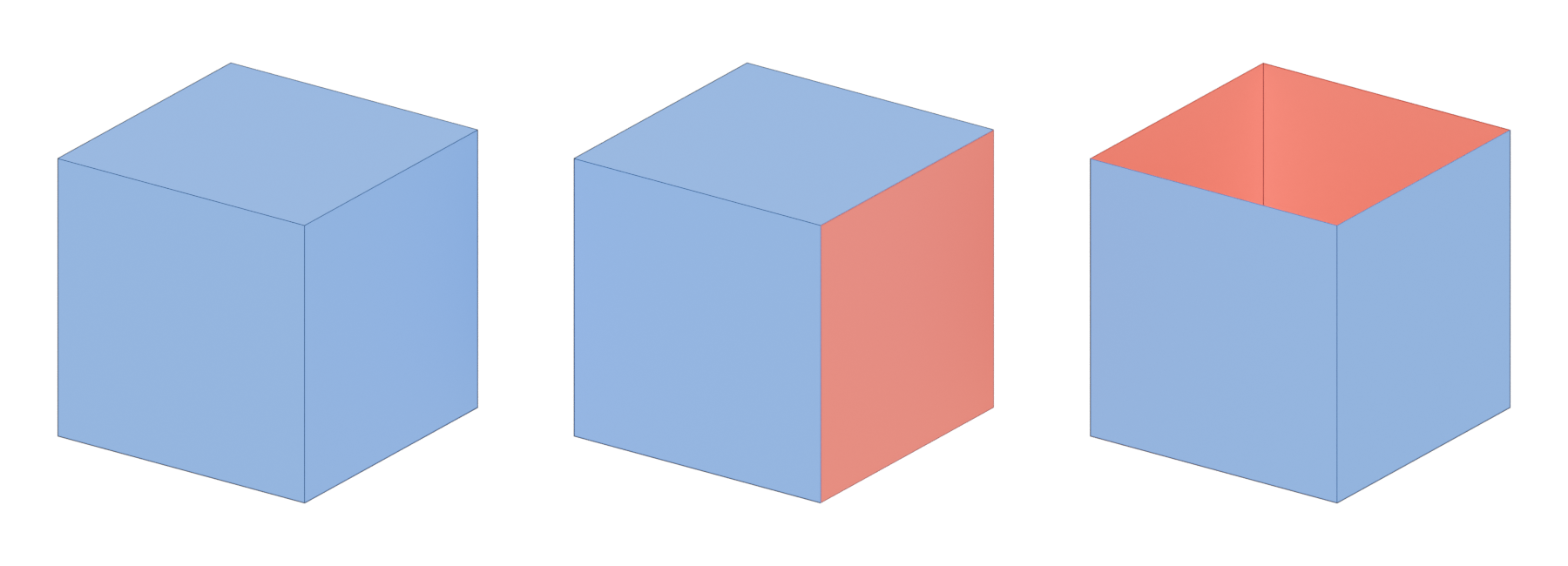

Three cubes coloured blue on front faces and red on back faces: a correct cube, a cube with one red face, and an open box whose red inside is visible.
Front faces blue, back faces red, the same idea as Blender's Face Orientation overlay. Left: a correct cube, all blue. Middle: one face's winding order is flipped, so it shows red and would be culled or shaded wrongly in the engine. Right: an open box with no top; looking in, you see the back of the inner faces, which a single-sided game material would not draw.Rendered in Blender 5.2 (Cycles) by the handbook author

#How the front is decided

In OpenGL, "Counter-clockwise means that the three vertices, in order, rotate counter-clockwise around the triangle's center", and "the default front face is GL_CCW" (OpenGL Wiki: Face Culling). The glTF format uses the same rule: with a normal transform, "the front-facing triangles use the counterclockwise order, and the back-facing triangles use the clockwise order" (Khronos Group: glTF 2.0 Specification).

The face normal follows from the same order: it points out of the front side. In your modeling tool, flipping a face's normal reverses its winding.

Left, a triangle with corners labelled 0, 1 and 2 running counter-clockwise, an orange arrow showing the direction, labelled front face, drawn. Right, the same triangle seen from behind, where the order runs clockwise, labelled back face, culled. Below, a cross-section of a closed box in front of a camera: the side facing the camera is orange and labelled drawn; the far side is dashed and labelled culled.
The same triangle is counter-clockwise from the front and clockwise from behind. With backface culling, only the side whose corners run counter-clockwise on screen is drawn, so the far side of a closed box is skipped.Diagram by the handbook author

#Culling and rendering cost

Face culling lets "non-visible triangles of closed surfaces to be removed before expensive Rasterization" (OpenGL Wiki: Face Culling). The OpenGL wiki's example is a cube: unless it is transparent, "6 of the triangles will always be covered up by the other 6" (OpenGL Wiki: Face Culling). By default, OpenGL culls the back: "GL_BACK is the face to be culled" (OpenGL Wiki: Face Culling).

Engines expose the same choice per material. Godot's default Cull Back means "only the front side of triangles being drawn. For closed-surface meshes, this means that only the exterior of the mesh will be visible" (Godot Engine: BaseMaterial3D). Cull Front draws only back sides, and Cull Disabled means "both the front face and back face will be visible" (Godot Engine: BaseMaterial3D).

In glTF the switch is doubleSided. When false, "back-face culling is enabled, i.e., only front-facing triangles are rendered"; when true, "triangles are rendered from both sides, and the normal vectors of the back-facing triangles are negated" (Khronos Group: glTF 2.0 Specification).

#Mirroring and winding order

Scaling an object by −1 on one axis mirrors it, and mirroring reverses the winding. glTF handles this explicitly: if the transform's determinant is negative, "the front-facing triangles use the clockwise order" (Khronos Group: glTF 2.0 Specification), and the spec notes that this "enables mirroring geometry via negative scale transforms" (Khronos Group: glTF 2.0 Specification). Not every tool or exporter is this careful, which is why mirrored props sometimes arrive inside out.

#Common mistakes

  • Ignoring Face Orientation. Turn it on before every export; a correct closed model is blue all over (Blender 3.5 Manual: Viewport Overlays).
  • Turning off culling to hide a bug. If a mesh looks wrong only from inside, fix the normals rather than making every material double-sided.
  • Applying negative scale without checking normals. Mirroring flips winding (Khronos Group: glTF 2.0 Specification).
  • Single-sided interior walls. A wall seen from both sides needs either thickness or two faces.
