Triangle

A triangle (often shortened to tri) is a face with three vertices and three edges (Blender 3.1 Manual: Mesh Structure). It is the basic unit of real-time graphics: every other kind of face is cut into triangles before the GPU draws it.

#Why triangles matter in games

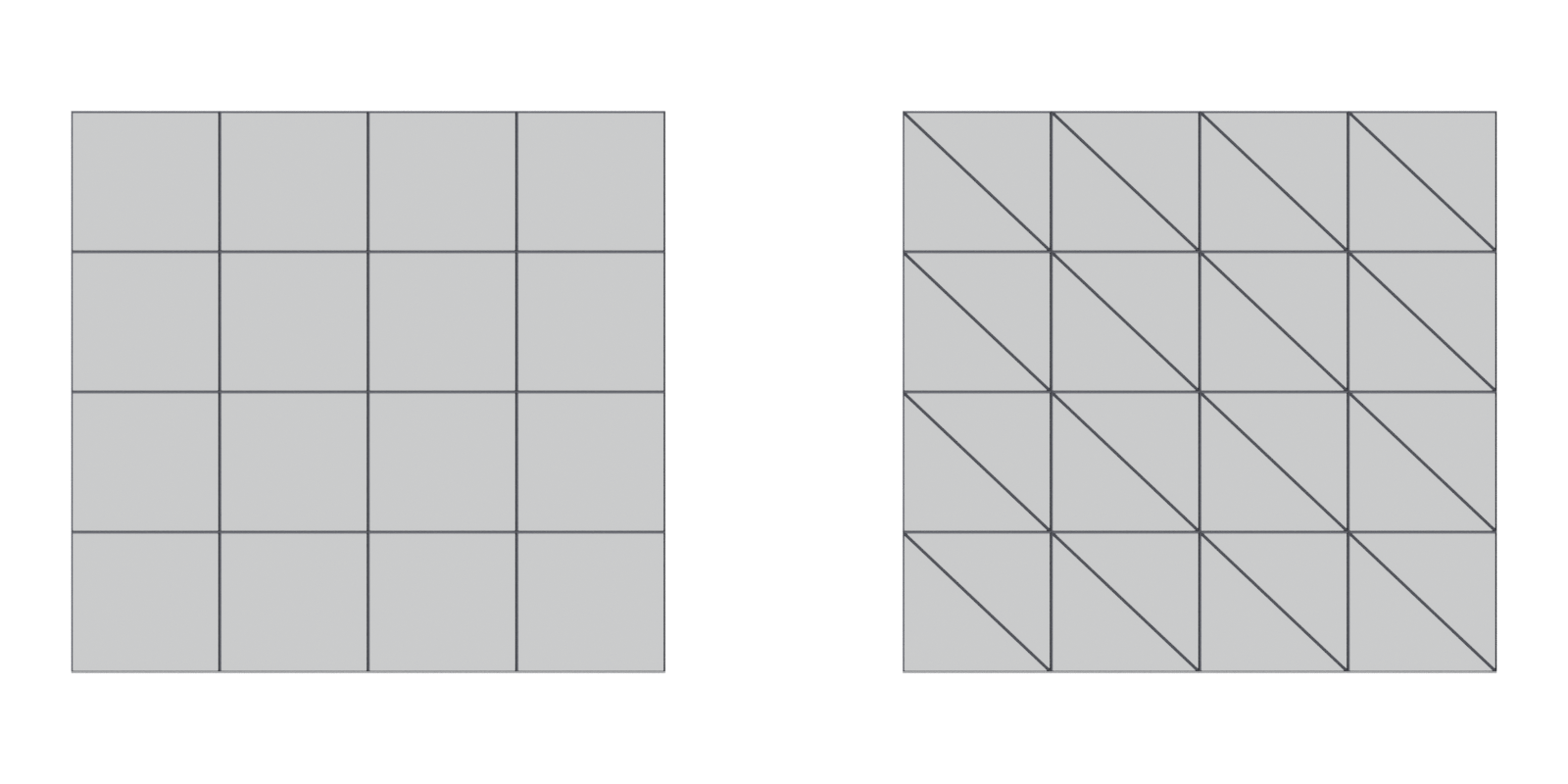

The GPU only draws triangles. Epic's documentation says meshes "must be triangulated as the graphics hardware only deals with triangles" (Unreal Engine Documentation: FBX Static Mesh Pipeline). Direct3D's basic primitive types are points, lines and triangles; there is no quad type (Microsoft Learn: Primitive Topologies). A quad you model becomes two triangles, and an N-gon becomes several. See triangulation.

Triangles are always flat. Three points always define a single plane, so "Triangles are always flat and therefore easy to calculate" (Blender 3.1 Manual: Mesh Structure). A quad can be bent; a triangle cannot. That is why the engine, the baker and the renderer can only agree on a shape once it is in triangles.

Budgets are counted in triangles. Because triangles are what reach the GPU, polygon budgets are normally given as triangle counts. Unreal's Static Mesh Editor reports "the number of triangles in the Static Mesh" (Unreal Engine Documentation: Static Mesh Editor UI).

Triangles have a front. The order of a triangle's three vertices (its winding order) decides which side faces forward. LearnOpenGL explains that, by default, "triangles defined with counter-clockwise vertices are processed as front-facing" (LearnOpenGL: Face culling). Back-facing triangles can be culled, which on a closed cube can save "more than 50%" of the pixel-shading work (LearnOpenGL: Face culling). See normals.

#Common mistakes

• Comparing face counts with triangle budgets. A 1,000-face quad mesh is 2,000 triangles. Maya's HUD shows faces and triangles on separate lines, so read the right one (Maya 2026 Help: Heads Up Display (HUD) Options).
• Chasing triangle count alone. Vertex splits can matter as much. One Polycount artist found a version of a model with more triangles but fewer engine vertices (Polycount forum: Vertex Count vs Triangle Count). See vertex.
• Collapsed triangles. A triangle whose corners lie on one line or one point has no area and is called degenerate; Unreal's importer can remove degenerate triangles and Epic says "this option should be enabled" in general (Unreal Engine Documentation: FBX Import Options Reference).
• Triangulating a mesh you still plan to subdivide. Keep a quad version as your source file.

#In different tools

• Blender. The Statistics overlay shows a triangle count next to vertices and faces (Blender 3.5 Manual: Viewport Overlays).
• Maya. Display > Heads Up Display > Poly Count lists triangles separately from faces (Maya 2026 Help: Heads Up Display (HUD) Options).
• Unreal Engine. The Static Mesh Editor shows the triangle count of the imported mesh (Unreal Engine Documentation: Static Mesh Editor UI).

#Related terms

face · quad · N-gon · triangulation · polygon and triangle budgets · level of detail · decimation
